一、用途
本机集合了将焊接后之圆筒罐身进行胀方、压角筋、压面筋等工序。因罐体材料同时拉伸,保证了罐体不会发生扭曲、变形或回弹,并且节省了人工及能源。(可按客户要求制作)。主要用在5加仑(18升)方罐之罐身一次成形上。
二、 主要技术参数
生产范围:9-20L大方罐(需换模具)
最大油压:15Mpa
适应材料厚度:0.2-0.4毫米
工作气压:0.3Mpa
生产能力:12-15罐/分
油箱容积:130升
电机功率:7.5KW
外形尺寸:1400×720×1200毫米
适用电源:AC 380V 50HZ
整机重量:1280公斤

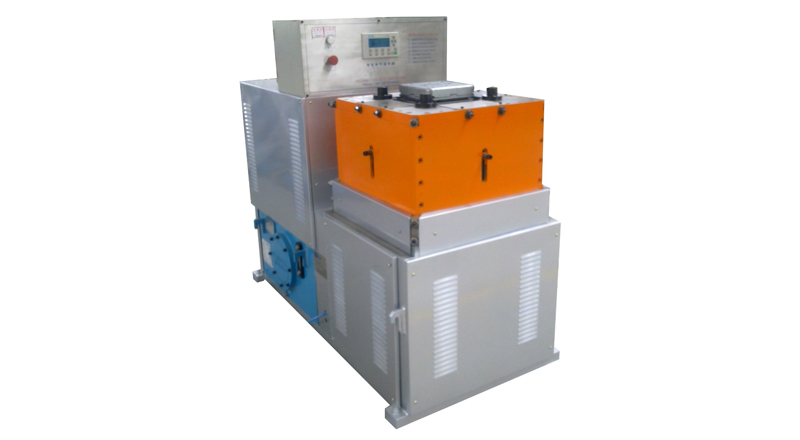

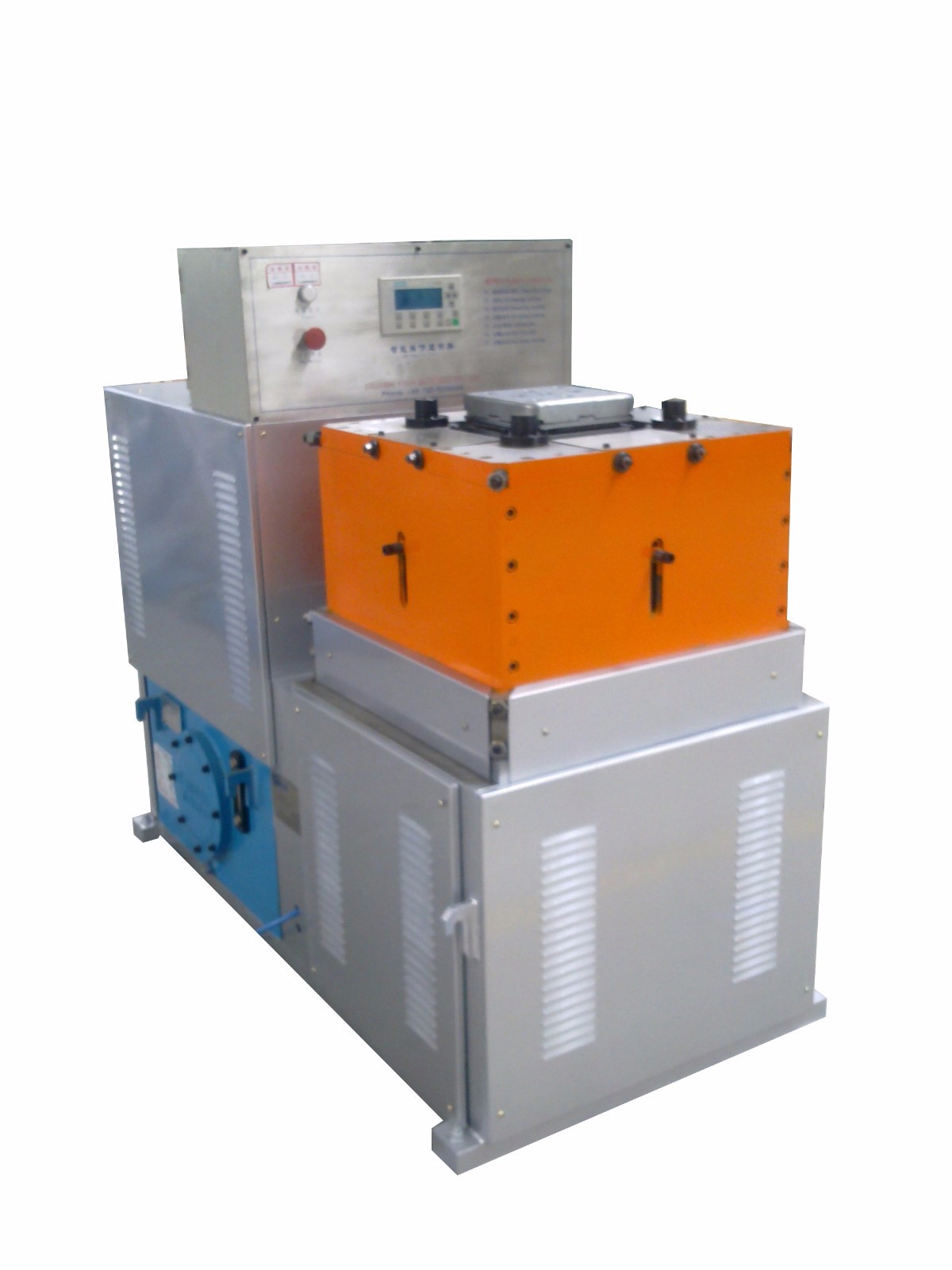

YX-18LC Square can Body Forming Machine
一.Function
It is combined with such procedures as expanding the container cylinder into square, angel tendon pressing and upper cover paneling.etc. The material of the container body is stretched at the same time, which ensures tanks not contorted, deformed or rebound, and save manual and energy sources. (as demanded by the customers). It is mainly used in the one-off forming of the 5-gallon square container body.
二. Major Technical References:
Scope of application: big square containers of 9-20L (Require changing molds)
Maximum oil pressure: 15Mpa
Adaptive material thickness: 0.2-0.4mm
Working air Pressure: 0.3Mpa
Capacity: 12-15 cans per minute
Volume of oil tank: 130L
Power of motor: 7.5KW
Outline Size: 1400×720×1200mm
Applied electric source: AC380V 50HZ
overall Weight: 1280kg
